Smart Temp Remote Controller Thermostat

Description

Description:
The M3H thermostat has been developed to control electric underfloor, water heating or water/ gas boiler systems. These units are designed for use in commercial, industrial, civil and domestic properties.

1. GB: Electric floor Heating, 16A (with both internal sensor and floor external sensor)
3. GE: for Gas Boiler or Water Heating, 3A (with internal sensor, no external sensor)

Specifications:
1. Power Supply:100 ~240 VAC, 50~60Hz
2. Current Load: 3A (water heating, gas boiler), 16A (electric heating)
3. Sensor: NTC, 10K
4. Accuracy: ±1°C
5. Set Temp. Range: 5-35°C
6. Limit Temp. Range: 5-60°C
7. Power Consumption: <1. 5W
8. Shell Material: PC +ABS ( Fireproof)
9. Installation Box: 86 * 86mm Square or European 60mm Round Box
10. Wire Terminals: Wire 2 x 1.5 mm2 or 1 x 2.5 mm2
11. Protection Class: IP20
12. APP:Tuya Smart life

Thermostat Functions:
– 1. Memory Function
Power off protection, save all your settings safely.

– 2. Programmable Function
Programmable function only for WiFi type, only Programmable on mobile phones.

– 3. Insert and external two sensors. External sensor cable is included for 16A Electric Floor Type.

– 4. Suit for various kinds of electric heating system
The thermostat is suitable for heating cable, heating mat, heating film and other electric heating devices.

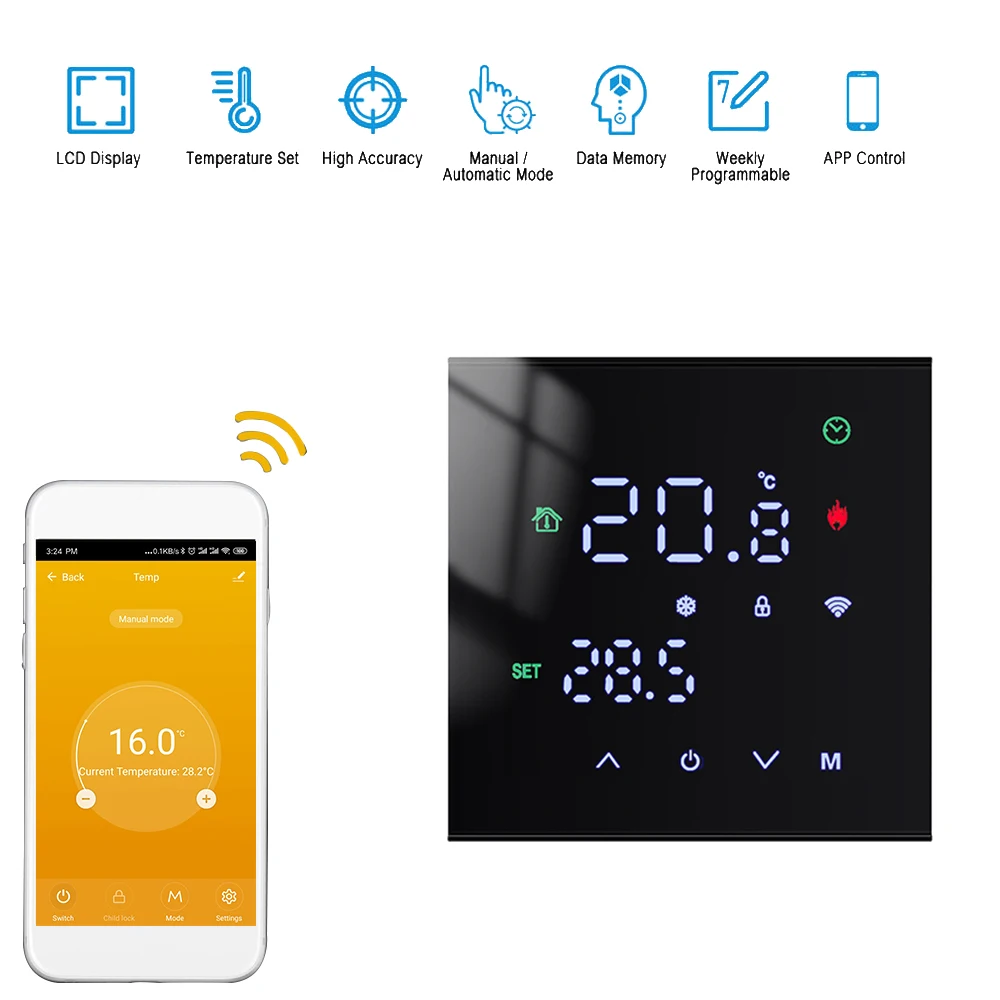

– 5. Wifi function
The wifi thermostat can be controlled by Mobile App wherever you are.

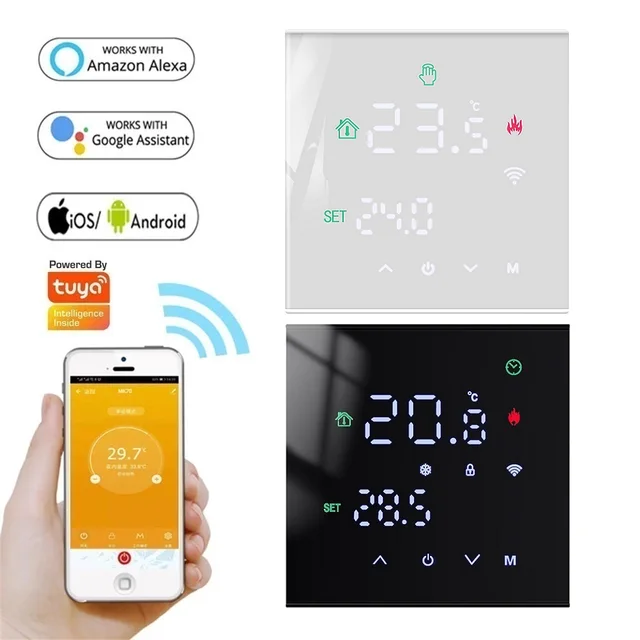

– 6. Support to be voice control by Alexa/Google Home
